PY Spring Cone Crusher Working Principle

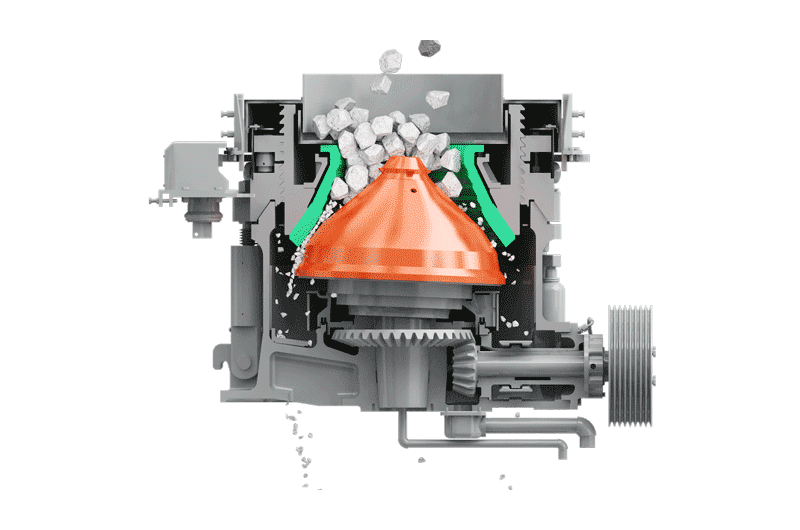

The working portions of spring cone crusher are cones, the fixed cone and movable cone. In the area of the movable cone moving close to the fixed cone, the ores will be squeezed, knocked and crooked, this area is the crushing chamber; when the movable cone deviate from the fixed cone, the crushed material will discharge, this is the discharging port.
During operation, the motor drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
Product Brief Introduction
01.High efficiency and fine cubic shape.
The movable cone operates conveniently, the crushing and discharging process works alternately and continuously; there is a parallel gap between the movable and fixed cone, which makes the final product fine cubic shape.
02.Diversity crushing chamber types.
Type of the crushing chamber is decided by the application of the ores. Standard type is for PYB (secondary crush); middle type is for PYZ (tertiary crush); short-head type is for PYD (Ultra fine crush).
03.Special sealed form and reliable operation.
PY series cone crusher adopts the dry oil or water as the sealed form, which makes the dust be out of the main unit. It ensures the clearance of the lubrication oil, which extend the lifespan of sliding bearing and thrust ball bearing. Therefore, the machine operates reliably.
