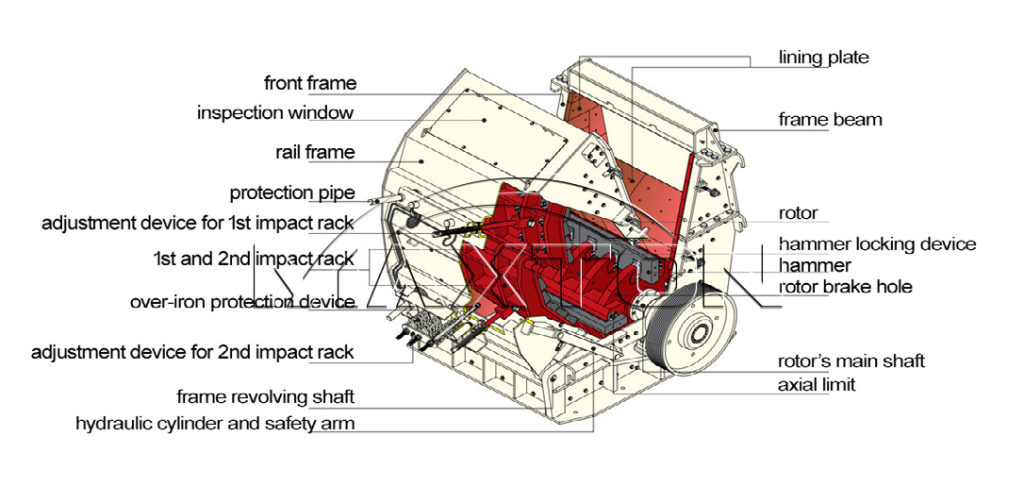

NP European Impact Crusher Working Principle
When the NP impact crusher is working, the motor drives the rotor to rotate at high speed through the pulley.
After the material enters the crushing chamber from the feed port, it is first impacted by the plate hammer on the high-speed rotating rotor and then thrown to the impact plate. The materials collide and impact repeatedly between the impact plate and the rotor and are constantly crushed.
At the same time, due to the effect of the impact plate, the material will be further refined by the rebound and shear force.
In this process, materials smaller than the discharge port size will be discharged from the bottom of the impact crusher, while larger materials will continue to be circulated and crushed in the crushing chamber until the required discharge particle size is reached.
The feed size of NP impact crusher is generally around 50-700mm, and the discharge size can be controlled in different ranges such as 0-5mm, 5-10mm, 10-20mm, 20-30mm, etc. to meet the needs of different users.
NP impact crusher is widely used in the field of construction materials to produce high-quality construction aggregates, such as for concrete production, road paving, etc. In the mining industry, it can crush various ores.
